ELECTRODES FOR TEMPORARY PACING "OPUS"

Dear colleagues!

Collective Society «Opusmed» in collaboration with cardiovascular clinics in Russia and Ukraine have been developed, implemented in industry and registered with the Ministry of Health of Ukraine:

HOLDS – ELECTRODES FOR TEMPORARY PACING «OPUS».

Field of application wire-electrodes «Opus" - use in devices and appliances that are designed to adjust various rhythm disturbances and cardiac conduction system in cardiac surgery and cardiovascular surgery.

The wires - electrodes can be used as part of these external devices and devices with direct application to the heart or other body (tissue):

- As a wire-electrodes for external cardiostimulators, for example, within the single-temporary pacemaker Medtronic 5348 (or 5388), produced by Medtronic Inc., U. S. models EKSN-01; EKSN -02; ЕКЅК-02; ЕКЅК-04M, ringtone maker-D (Russia) and similar, including the function of the defibrillator;

- As the electrode leads of devices for measuring bioelectric potentials in open heart surgery, such as pacemaker in the ringtone maker-D (Russia) and similar;

- As electrodes during various research functions of organs or tissue during surgery, and in case of studies in vitro.

We offer some specifications wire-electrodes «Opus»:

• Electrical resistance wire-electrode DC to 30 ohms.
• Full electrical resistance wire-electrode AC at a frequency of 100 Hz 500 ом - 1000 ом.
• Electrical insulation resistance wires, electrodes not less than 2 M ohms.
• Average life (resource) wire-electrode at least 400 hours.

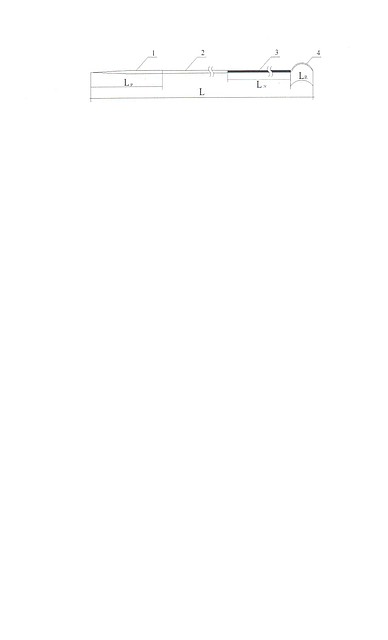

Figure .wire-electrode of needle tips «Opus» -1/h-s

1 - straight cutting needles

2 - an isolated part of the wire,

3 - not isolated of the wire,

4 - regular taper cutting needles.

L-length wire-electrode - 65 cm, 90cm, 120cm-;

LR-chord length Regular Taper Cutting needles - 17-26mm;

LN-length not isolated of wire - 60-80mm;

Lr-length straight Cutting needles with a radial ribbed - 60mm.

Structurally wire-electrodes «Opus" are made of woven microwires in isolation at the ends of a fixed needle. A straight Cutting needle length 60mm, with a radial notch for the breakage, the other Regular Taper Cutting 17-26mm for sutures to the myocardium.

High quality wire-electrodes «Opus» confirmed the clinical trial at the National Institute Cardiovascular Surgery. Amosov National Academy of Sciences of Ukraine (2011).

The wires-electrodes «Opus" produced sterile length -0.65 m,-090m, -1.20 m.

        For more information and Order wires-electrodes «Opus" phone : +38 044 220 11 91; mail: opusmed@ukr.net ; www.opusmed.prom.ua
